What Does the 'EC' Error Code Mean on Your AC?

Why Is My AC Suddenly Displaying an 'EC' Error Code?

Is your air conditioner running constantly, but the house is getting warmer instead of cooler? When a sudden error flashes on your thermostat during peak summer heat, it is incredibly frustrating. One of the most common homeowner questions answered by our technicians at Unlimited Heating, Plumbing & Refrigeration is what to do when that dreaded "EC" code appears. When homes in Moscow lose their cooling capacity in the middle of a July heatwave, the situation demands immediate attention to restore comfort and indoor air quality.

The "EC" error code is your air conditioning system's way of crying out for help. It stands for "Evaporator Cooling" or simply "Error Code" depending on your specific manufacturer, but the underlying message is always the same: your system is failing to cool the indoor air properly. Modern air conditioners are equipped with internal sensors designed to protect the most expensive components from catastrophic failure. When the system detects that the evaporator coil temperature is dropping too low or that the pressure is incorrect, it shuts down the cooling cycle and displays the EC code to prevent the compressor from destroying itself.

To get your system back online safely and permanently, you need professional HVAC services. While there are a few basic checks you can perform safely as a homeowner, our team typically sees the EC code point to either a significant refrigerant leak or a severe airflow restriction. Both of these issues require specialized tools, pressure gauges, and a deep understanding of the refrigeration cycle to diagnose correctly.

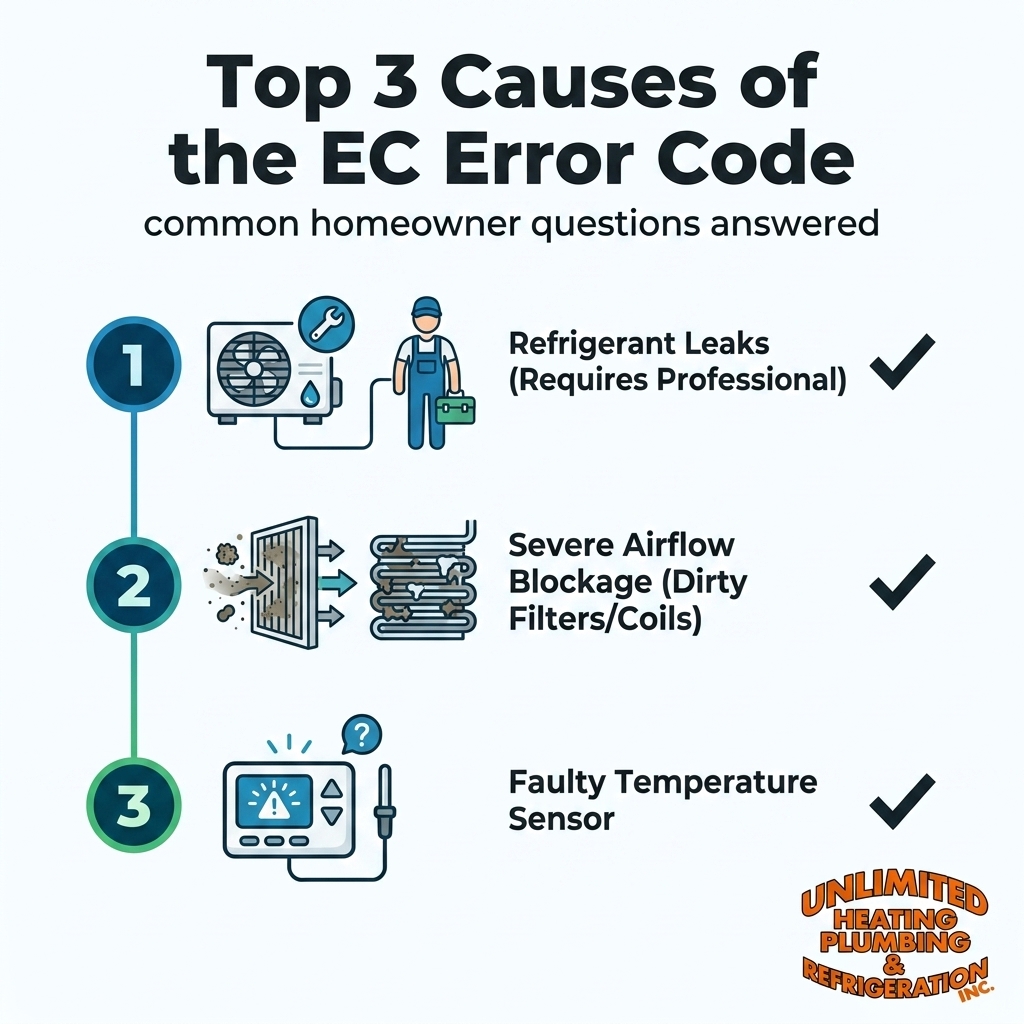

Primary Culprits Behind the EC Error Code

When your air conditioner locks you out with an EC error, the system is actively preventing further mechanical damage. Understanding what triggers this self-preservation mode helps you see why a quick reset rarely solves the underlying problem. In our years of restoring cooling performance across the Palouse region, we find that a summer EC code usually boils down to a few core mechanical or airflow failures.

1. Refrigerant Leaks: Your air conditioner relies on a precise charge of chemical refrigerant (often referred to as Freon or Puron) to absorb heat from inside your home and release it outside. If a microscopic hole develops in the copper lines or coils, the refrigerant slowly escapes. When the system lacks enough refrigerant, the pressure drops. This pressure drop causes the indoor evaporator coil to become too cold, eventually freezing over entirely. The temperature sensors detect this abnormal drop and trigger the EC code to stop the system before the compressor pulls in liquid refrigerant, which would destroy it.

2. Severe Airflow Blockage: For the refrigerant cycle to work, warm indoor air must constantly blow across the indoor evaporator coil. This warm air prevents the cold coil from freezing. If the airflow is severely restricted, the coil gets colder and colder until it turns into a block of solid ice. The system recognizes this lack of heat transfer and throws the EC code. This is often the result of severely neglected maintenance.

3. Faulty Temperature Sensor: Air conditioners use thermistors (temperature sensors) clipped directly to the copper piping to monitor the system's performance. Over time, the wiring can fray, or the sensor itself can fail. When a sensor breaks, it may send a false reading to the control board, tricking the system into thinking the coil is freezing when it is actually operating normally.

To better understand what you are dealing with before scheduling an air conditioning repair, review how these causes present themselves:

• Refrigerant Leak — Common Symptoms: Hissing sounds, ice on refrigerant lines, warm air from vents — Required Action: Professional leak search and repair

• Airflow Blockage — Common Symptoms: Weak airflow from vents, heavily soiled filter, frozen indoor coil — Required Action: Replace filter, professional coil cleaning

• Faulty Sensor — Common Symptoms: System shuts down despite clean filters and proper cooling — Required Action: Professional electrical diagnostic and sensor replacement

How Local Environmental Factors Trigger Airflow Restrictions

While a dirty indoor air filter is a common culprit for airflow issues, the outdoor unit (the condenser) plays an equally vital role in the cooling process. The outdoor condenser's job is to pull massive amounts of surrounding air through its aluminum fins to dissipate the heat removed from your home. If that heat cannot escape, the entire cooling cycle breaks down, the compressor overheats, and the system eventually throws an EC code.

In our region, the local climate creates a perfect storm for severe condenser clogs. Moscow's dry summer heat, combined with the heavy agricultural dust blowing off the Palouse wheat fields during harvest season, creates a unique challenge for outdoor HVAC equipment. Unlike ordinary household dust, this fine, dry agricultural particulate gets sucked directly into the outdoor unit by the powerful condenser fan.

Once inside, the dust coats the delicate aluminum fins. If there is any moisture present, it bakes into a thick, restrictive blanket. This layer of dirt acts as an insulator, trapping the heat inside the system instead of letting it exhaust into the outdoor air. As the system struggles to release heat, the indoor coil temperatures become erratic, heat transfer efficiency plummets, and the EC code is triggered.

Visual inspection is key: Walk outside and look closely at the sides of your condenser unit. If the metal fins look like they are wearing a heavy sweater of dirt, dust, or cottonwood seeds, your system is suffocating. This environmental buildup is a leading cause of summer breakdowns and perfectly illustrates why keeping the outdoor unit clear is just as important as changing your indoor filters.

Safe DIY Troubleshooting Steps to Try First

Before you pick up the phone to call a technician, there are a few safe, basic checks you can perform. Verifying proper airflow and electrical connections is always the first step. By ruling out the simple fixes, you ensure you aren't paying for a service call over a clogged filter.

Indoor Airflow Checks

• Inspect and replace the air filter: Turn the system off at the thermostat. Locate your indoor air filter and pull it out. Hold it up to a light source. If you cannot see light passing through the media, the filter is completely clogged and must be replaced immediately. A blocked filter is the fastest way to freeze an indoor coil and trigger an EC code.

• Check all return and supply vents: Walk through your home and ensure that rugs, furniture, or heavy curtains are not blocking the air vents. Closing too many vents in unused rooms actually increases static pressure and restricts the airflow the system needs to function.

Outdoor Condenser Checks

• Clear the perimeter: Go outside and ensure there is a clear two-foot radius around the entire condenser unit. Trim back any overgrown bushes, tall grass, or low-hanging branches that might be impeding the fan's ability to pull in air.

• Remove visible surface debris: If you see a thick layer of leaves, grass clippings, or heavy Palouse dust on the outside of the unit, you can gently brush it away with a soft broom. Do not use a high-pressure power washer, as this will bend and destroy the delicate aluminum fins.

The Single System Reset

Sometimes, a power surge or a momentary glitch can cause the control board to throw a false code. You can attempt a single system reset to clear the board's memory.

1. Turn the thermostat to the "Off" position.

2. Locate your home's main electrical panel and find the breaker labeled for the air conditioner.

3. Flip the breaker to the "Off" position and wait exactly five minutes.

4. Flip the breaker back on, wait one minute, and then turn the thermostat back to "Cool."

A strict warning: If the EC code returns after this single reset, stop immediately. Do not continue to reset the breaker. Repeatedly forcing a system to run when it is trying to protect itself from a hard fault will inevitably lead to a burned-out compressor. If the code comes back, it is time to rely on routine preventative maintenance and professional diagnostics.

The Hidden Dangers of Ignoring a Refrigerant Leak

If your filters are clean and the outdoor unit is clear of debris, the EC code almost certainly points to a loss of refrigerant. One of the most dangerous misconceptions in the HVAC world is that air conditioners "use up" or "consume" refrigerant over time. This is entirely false. An air conditioner is a sealed, closed-loop system. If the refrigerant level is low, there is a physical leak in the copper tubing or the coils.

Running an air conditioner with a known refrigerant leak is incredibly risky. The compressor—the large, expensive motor sitting inside the outdoor unit—relies on a steady flow of cool, returning refrigerant vapor to keep its internal motor windings from overheating. When the refrigerant level drops, the compressor runs hotter and longer, straining to cool the house. Eventually, the internal insulation melts, the motor shorts out, and the compressor dies completely. Ignoring a summer compressor issue will lead to catastrophic equipment failure and a massive replacement expense.

Furthermore, handling refrigerant is strictly regulated. Under EPA Section 608 guidelines, only certified professionals are legally permitted to handle, recover, or charge HVAC refrigerants. Venting these chemicals into the atmosphere is illegal and harmful to the environment.

Last summer, we saw a difficult issue with a home's mini-split air conditioning units that kept throwing repeated error codes because of a slow, hidden leak. Our technicians tracked down the underlying leak, repaired the copper flare connections, and completely solved the problem. By finding the actual source of the leak instead of just adding more refrigerant, we saved their compressors from total failure.

Why Comprehensive Diagnostics Matter for the EC Code

When dealing with complex error codes, the difference between a temporary patch and a permanent fix comes down to the quality of the diagnostic process. At Unlimited Heating, Plumbing & Refrigeration, our technicians do not just clear the code and walk away. We believe in comprehensive diagnostics to find and permanently seal the underlying issue.

Simply recharging a leaking system with new refrigerant is a costly band-aid. The system will run for a few weeks or months, but the new refrigerant will eventually leak out of the exact same hole, and the EC code will return. A proper diagnostic process involves three critical steps:

• Electronic Leak Detection: Using highly sensitive electronic sniffers to pinpoint the exact location of the microscopic hole in the indoor or outdoor coil.

• Nitrogen Pressure Testing: Pumping dry nitrogen into the empty lines to pressurize the system and verify that the repair holds under extreme stress.

• Airflow and Subcooling Analysis: Measuring the exact temperature drop and pressure ratios to ensure the system is perfectly balanced before leaving the home.

A thorough technician will always explain exactly what caused the issue, showing you the data rather than just telling you the system is fixed. Proper AC diagnostics ensure peak energy efficiency and long-term reliability under heavy July heat loads. During a recent record-breaking heatwave, our team helped a local Moscow homeowner whose system was constantly locking out. We dug past the surface codes to find a microscopic coil leak, ensuring they received the exact repair their system needed to handle the peak-summer strain. If you want to learn more about the specifics of fixing the EC error on your AC, insisting on a full diagnostic workup is the only way forward.

Frequently Asked Questions About AC Error Codes

What does EC mean on my air conditioner?

EC stands for Evaporator Cooling or Error Code, pointing to a refrigerant leak or severe airflow blockage. When your system detects that the indoor coil is getting dangerously cold and is at risk of freezing solid, it shuts off the compressor to prevent mechanical damage. This code is a protective measure indicating that the system cannot transfer heat properly.

How do I fix the EC code on my AC?

Start by changing the air filter and cleaning the outdoor unit. If a severely clogged filter is restricting airflow, replacing it might solve the problem. However, if the filter is clean and the code persists, the issue is likely a refrigerant leak. A professional HVAC technician must locate the leak, repair the copper line, and recharge the system to factory specifications.

Is it safe to run my AC with an EC code?

No. Continuing to run the unit can cause the evaporator coil to freeze and permanently damage the compressor. The error code exists specifically to lock you out of the system before catastrophic failure occurs. Bypassing the code or repeatedly resetting the breaker forces the system to run under dangerous conditions, which can turn a minor repair into a full system replacement.

How do you reset the EC code on an air conditioner?

Turn off the power at the thermostat and the main electrical breaker for 5 minutes, then turn it back on. This performs a hard reset on the control board and clears the system's memory. If the code was caused by a momentary power glitch, the system will resume normal operation. If the code returns immediately or within a few hours, stop resetting it and call for service.

Can a dirty filter cause the EC code?

Yes, a severely clogged filter restricts airflow enough to drop the temperature in the evaporator coil, triggering the error. Without warm indoor air blowing across the cold coils, the refrigerant inside absorbs no heat. The coil eventually freezes into a block of ice, and the temperature sensors trip the EC code to shut the system down. Regular filter changes are your best defense against this specific trigger.

Schedule Your Professional AC Diagnostic Today

Ignoring an EC error code never makes the problem go away; it only leads to larger, more expensive repairs down the road. If you have checked your filters and cleared your outdoor unit but the system still refuses to cool, it is time to call in the experts. Schedule a comprehensive inspection today to ensure your home stays cool and comfortable all summer long. Proactive repairs right now prevent the frustration of dealing with a broken AC today, ensuring your home maintains ideal indoor air quality and cooling performance through the hottest months of the year.
