Resetting the Breaker vs. Calling a Tech for an E8 Error Code

The Breaker Reset Dilemma: Staring Down an E8 Error Code

When your air conditioner suddenly shuts down in the peak July heat, understanding the rules for Resetting the Breaker vs. Calling a Tech for an E8 Error Code can save your compressor from permanent damage. Flipping a tripped breaker is a reflex for most of us. The power drops, an appliance shuts off, you walk over to the electrical panel, flip the switch back to the "on" position, and move on with your day. A common myth among homeowners is that if your air conditioner's breaker trips, you just flip it back on, assuming it was a harmless electrical glitch. But when you are standing at the thermostat staring down an E8 error code during brutal summer heatwaves, treating that breaker like a simple light switch can be a costly mistake.

Knowing how to properly handle this specific warning is the key to protecting your cooling equipment from permanent damage. This specific code is not a generic error; it is a critical warning from your system's internal safety sensors. Making the wrong choice at the electrical panel can mean the difference between a quick, inexpensive fix and a catastrophic compressor failure that requires a complete system replacement.

For comprehensive HVAC system services, relying on a professional assessment is always the safest route. However, knowing exactly what this code means and when it is actually safe to attempt a reset gives you the power to make an informed, confident decision when your house is rapidly warming up.

What an E8 Code Actually Means for Your Compressor

To make the right decision at the breaker panel, you first need to understand the mechanical reality behind the warning. An E8 error code generally indicates a high-temperature protection fault or a compressor overload. Your air conditioning system is equipped with internal sensors designed to monitor the heat generated by the compressor motor. When these sensors detect abnormal, dangerous levels of heat, they intentionally shut the unit down to prevent electrical fires, melted wiring, or permanent mechanical damage.

There is a distinct difference between a standard electrical trip—like plugging too many appliances into one kitchen outlet—and a thermal overload event. An E8 code is a symptom of an overworked system, not the root cause itself. The system is essentially telling you that it cannot safely reject the heat it is absorbing, and continuing to operate will destroy the internal components. If you want to know how to repair an Error 8 code on your AC, the first step is recognizing that the system is protecting itself from self-destruction.

The Role of Thermal Overload Protectors

Inside your compressor, thermal overload protectors act as the last line of defense. These built-in safeties cut power to the motor when internal temperatures exceed safe operating limits.

• Temperature monitoring: The sensors constantly read the heat of the motor windings.

• Automatic shutdown: If the temperature spikes, the protector breaks the electrical circuit, stopping the compressor immediately.

• Cooldown period: The system will not allow normal operation until the internal temperature drops back to a safe baseline.

Bypassing these safeties by forcing a restart at the breaker is inherently dangerous. You are essentially demanding that a dangerously hot motor start running again before it has had a chance to cool off.

High Head Pressure Explained

One of the primary triggers for an E8 thermal overload is high head pressure. Your air conditioner cools your home by absorbing indoor heat and rejecting it outdoors. When poor heat rejection occurs—often due to restricted airflow—pressure builds up inside the compressor.

This trapped high-pressure refrigerant places massive mechanical strain on the motor windings. The compressor has to work twice as hard to pump the refrigerant, generating excessive heat in the process. As the pressure climbs, the temperature climbs with it, eventually triggering the E8 code and shutting the system down.

The 'One Reset Rule': When Flipping the Breaker is Safe

While an E8 code is serious, there are specific, limited circumstances where a system reset is acceptable. Industry experts recommend following the strict "One Reset Rule": you get exactly one attempt to reset the breaker after an E8 code appears. If the system does not resume normal operation, your safe reset window is officially closed.

Safe scenarios for a reset usually involve external power anomalies rather than internal mechanical failures. If your neighborhood just experienced a recent grid power surge, a severe summer thunderstorm, or a momentary utility drop, the system's electronics may have triggered a false positive or tripped as a protective measure against the erratic voltage. In these specific cases, a single reset is a reasonable troubleshooting step.

The Safe Reset Procedure:

1. Turn off the thermostat: Always switch your thermostat to the "Off" position before touching the electrical panel. You do not want the system trying to draw power the second the breaker flips.

2. Locate the AC breaker: Find the dedicated double-pole breaker for your air conditioning unit in your main electrical panel.

3. Flip completely off, then on: A tripped breaker often rests in the middle position. Push it firmly to the "Off" position until you hear a click, then push it firmly to the "On" position.

4. Wait 15 minutes: This is the most crucial step. Give the system's internal computers time to reboot and allow the compressor's internal pressures to equalize.

5. Turn the thermostat back on: Set the thermostat back to "Cool" and lower the temperature to trigger a cooling cycle.

If the breaker trips again immediately, or the E8 code returns within a few minutes, do not attempt a second reset. The problem is mechanical, and the safe reset window is closed.

The Danger Zone: How Repeated Resets Destroy Compressors

Contrasting the safe, single reset with the severe mechanical dangers of repeatedly forcing an overheated compressor to turn back on is vital for any homeowner. The danger zone begins the moment you flip that breaker for a second or third time. When a compressor is locked out due to high head pressure or thermal overload, the internal motor windings are already dangerously hot. Forcing electricity back into those hot windings causes extreme physical stress.

Repeated resets bypass the mandatory thermal cooldown period. Every time you flip the breaker, a massive surge of electricity hits the motor. Because the compressor is already struggling against high pressure, it cannot start turning. Instead, that electrical energy converts directly into more heat. Eventually, the internal wiring will literally fuse together or short out against the compressor casing. What started as a protective E8 shutdown transforms into a dead, grounded compressor.

The financial implications of a fused compressor are severe. You are looking at major replacement costs versus the expense of a simple diagnostic visit. If you notice the outdoor unit is physically hot to the touch, or if you hear a loud humming or buzzing noise coming from the equipment, stop all DIY troubleshooting immediately. These are signs of a locked rotor, and you need professional AC repair right away.

Electrical Surges vs. Mechanical Failures

Knowing how to tell the difference between a grid issue and a system failure can save your equipment.

One recent summer service call for general HVAC service needs perfectly illustrates this danger. Our technician thoroughly explained all the work performed to the homeowner, making sure the customer understood that attempting to force the system on repeatedly had bypassed the built-in thermal cooldown period. Electrical surges from the grid happen instantly and affect the whole house. Mechanical failures, like a failing fan motor or a clogged coil causing an E8 code, build up over time and will never be "fixed" by a breaker reset.

The Palouse Climate Factor: Dust, Heat, and Overworked Coils

The realities of your local climate play a massive role in why your system might trigger an E8 error code. In our years of experience serving Moscow ID and the surrounding Palouse region, our team at Unlimited Heating, Plumbing & Refrigeration frequently sees how the summer environment actively works against your air conditioner's ability to reject heat. Understanding this regional context helps explain why your compressor is suddenly overheating.

During the dry summer months, agricultural dust from the Palouse rapidly coats outdoor condenser coils. Your air conditioner relies on the thousands of tiny aluminum fins on the outdoor unit to transfer heat from the refrigerant into the outside air. When these fins are blanketed in a layer of fine, insulating agricultural dust, the heat cannot escape. Research shows that dirty condenser coils can increase compressor energy consumption by up to 30 percent. The compressor has to run longer and harder, generating excessive internal heat.

Combine this restricted airflow with peak July heatwaves, and you have a recipe for an E8 thermal overload. The unit's ability to reject heat outdoors is drastically reduced by the high ambient temperatures. The system is fighting both the hot weather and the thick layer of dust. This is why investing in routine AC maintenance is so critical; keeping those coils clean is the best defense against high head pressure and compressor failure.

Agricultural Dust and Airflow Restriction

The specific impact of Palouse dust on aluminum coil fins cannot be overstated. This dust is fine, sticky, and bakes onto the coils under the summer sun.

• Insulating effect: The dust acts like a heavy, insulating blanket on your AC unit, trapping the heat inside.

• Airflow blockage: As the dust builds up, it blocks the fan from pulling sufficient air through the fins.

• Deep cleaning required: Standard hosing off with a garden hose is often not enough to restore proper airflow; the dust requires professional chemical cleaners to fully dissolve.

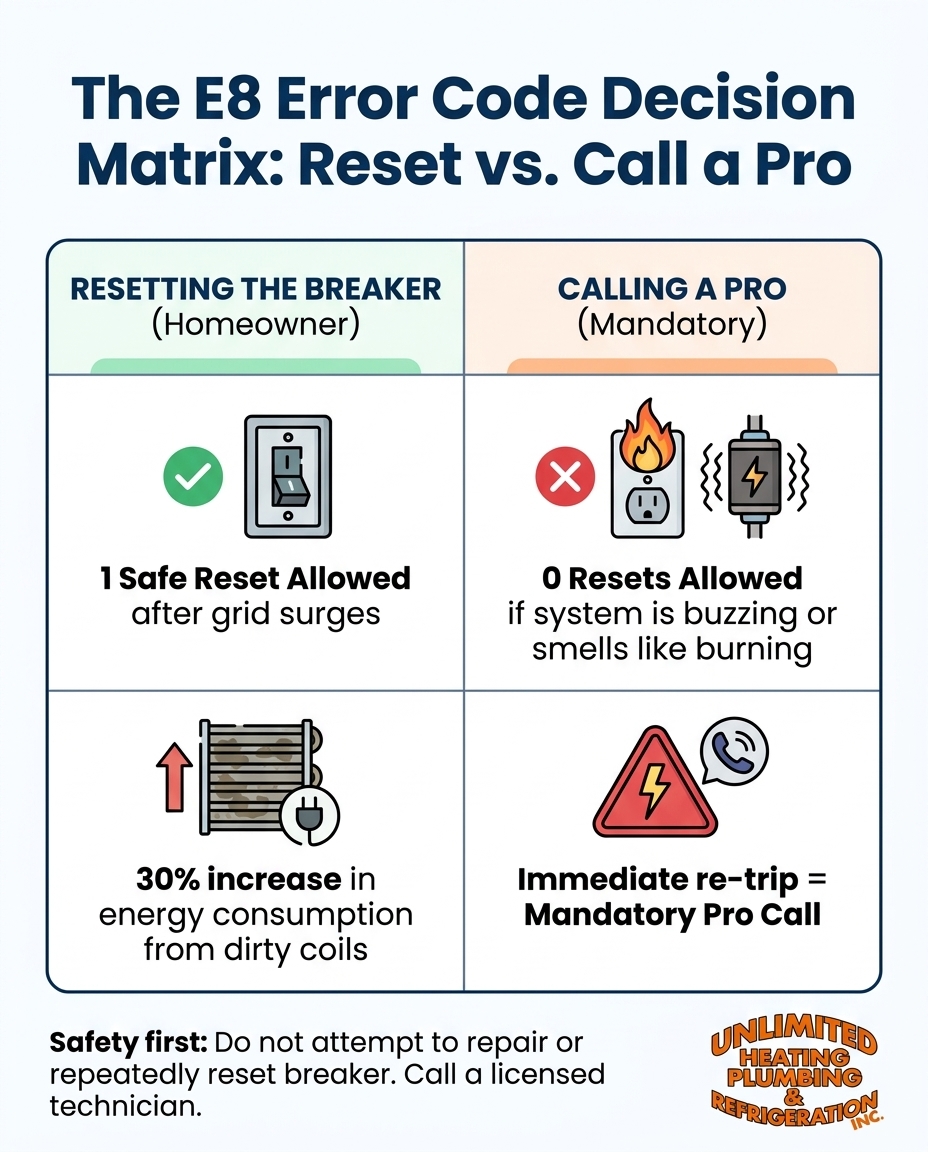

Resetting vs. Calling a Tech: Your E8 Decision Matrix

When you are standing in front of your thermostat sweating, you need clear guidance. This decision matrix synthesizes the symptoms and risks to help you make an immediate, safe choice regarding your HVAC system.

• Power outage or severe thunderstorm just occurred — Immediate Action: Attempt the "One Reset Rule" — Risk Level: Low — Expected Outcome: System reboots and resumes normal cooling

• E8 code appears during normal, clear weather — Immediate Action: Turn off thermostat, inspect outdoor unit — Risk Level: Moderate — Expected Outcome: Requires professional diagnosis of airflow or sensors

• Breaker trips immediately after a reset — Immediate Action: Leave breaker OFF, call a technician — Risk Level: High — Expected Outcome: Prevents further electrical damage to the compressor

• Outdoor unit is buzzing, humming, or hot to the touch — Immediate Action: Leave breaker OFF, call a technician — Risk Level: Severe — Expected Outcome: Averts catastrophic compressor burnout and wiring fires

• Burning electrical smells near the panel or AC unit — Immediate Action: Leave breaker OFF, call a technician — Risk Level: Severe — Expected Outcome: Averts potential electrical fire and total system failure

Reiterate this rule in your mind: any sign of burning smells, loud buzzing, or an immediate re-tripping of the breaker falls strictly into the "Call a Tech" column. Do not gamble with your compressor's lifespan.

What to Expect During an Expert E8 Diagnostic

Many homeowners hesitate to call a professional because they are unsure of what the process entails or fear an immediate sales pitch for a new unit. Reassuringly, a professional diagnostic process is methodical, data-driven, and designed specifically to remove the guesswork from an E8 error code.

At Unlimited Heating, Plumbing & Refrigeration, our expert diagnostics accurately identify the root cause of an E8 code, preventing costly DIY mistakes. When a technician arrives, they follow a step-by-step diagnostic process. First, they check the electrical loads. This involves measuring the exact amperage the compressor is drawing when it tries to start. Next, they test the capacitors to ensure the motor is receiving the proper electrical boost. Finally, they attach specialized gauges to measure the refrigerant pressures, identifying if high head pressure is causing the thermal overload.

For example, during a recent peak-summer appointment involving a difficult issue with ductless mini-split systems, our technicians accurately diagnosed and completely resolved the problem by systematically checking these electrical loads rather than just clearing the code. This level of precision accurately distinguishes between a harmless electrical glitch, a failing run capacitor, or a compressor that is on the verge of death. Deep coil cleaning is often part of the diagnostic resolution, ensuring the system can breathe properly again. A professional assessment is the only way to protect the equipment from permanent damage.

Testing Electrical Components Safely

Handling high-voltage HVAC components is inherently dangerous and requires specialized tools.

• Multimeter testing: Professionals use advanced multimeters to check amp draw and the resistance of the motor windings.

• Capacitance checks: Technicians safely discharge and test dual-run capacitors to ensure they are providing the correct microfarads.

• Safety first: These diagnostic steps expose live 240-volt wiring and cannot be done safely by a homeowner without proper training and protective gear.

Frequently Asked Questions About AC Breaker Trips and E8 Codes

What does an E8 mean on my AC system?

An E8 error code indicates a high-temperature protection fault or compressor overload. The system's internal sensors have detected that the compressor is running dangerously hot and have shut the unit down to prevent permanent mechanical damage or electrical fires. It is a protective measure against overheating.

Is it safe to reset a tripped AC breaker?

It is generally safe to attempt exactly one reset if the trip was caused by an external factor, such as a recent grid power surge or a severe thunderstorm. However, if the breaker trips again immediately after the reset, it is no longer safe to continue flipping it, as this indicates a severe mechanical or electrical short.

Why does my AC breaker keep tripping after I reset it?

A breaker that repeatedly trips is doing its job by protecting your home from a massive electrical short or a locked compressor rotor. When the compressor overheats and seizes up, it draws a massive amount of amperage trying to start, which instantly trips the breaker. Forcing it to reset can fuse the internal wiring.

Can I clear an E8 error code myself?

You can clear the code temporarily by following the safe reset procedure (turning off the thermostat, flipping the breaker, and waiting 15 minutes). However, if the root cause—such as dirty condenser coils or a failing fan motor—is not addressed, the E8 code will return as soon as the system overheats again.

How much does it cost to fix an E8 error code?

The cost varies widely depending on the root cause of the high-temperature fault. If the issue is simply a clogged condenser coil that needs professional chemical cleaning, the repair is relatively inexpensive. If the E8 code was ignored and the compressor windings have fused, it will require a costly compressor replacement.

Will a dirty air filter cause an E8 error code?

While a dirty indoor air filter primarily causes the evaporator coil to freeze up, severe airflow restrictions can eventually cause the entire system to work harder, increasing internal heat. However, a dirty outdoor condenser coil is a much more common and direct cause of the high head pressure that triggers an E8 code.

Protect Your Compressor: Make the Safe Call for Your AC

When dealing with an E8 error code, the core message is simple: a single reset is an acceptable troubleshooting step after a power surge, but repeated resets are a fast track to a dead compressor. Bypassing your system's thermal overload protections places massive strain on the motor windings, turning a manageable repair into a catastrophic failure.

Understanding the difference between resetting the breaker vs. calling a tech for an E8 error code protects your home and your wallet. The value of a definitive, professional diagnostic cannot be overstated. If your system is locked out, hot to the touch, or repeatedly tripping the breaker, stop your DIY efforts immediately. Schedule a professional inspection today before the summer heat causes permanent, irreversible damage to your cooling system.
