When Your AC Quits on the Hottest Day: Understanding AC Contactor Failure
AC contactor failure symptoms and causes in extreme summer heat are something every homeowner in Moscow, ID should know before summer peaks. This one small electrical component — about the size of a deck of cards — is responsible for sending power to your compressor and condenser fan every time your thermostat calls for cooling. When it fails, your entire system can go down, often on the hottest afternoon of the year.
Here is a quick overview of the most common symptoms and causes:
Common AC Contactor Failure Symptoms:
- AC unit will not turn on at all
- AC runs constantly and will not shut off
- Intermittent or inconsistent cooling
- Loud humming, buzzing, or chattering from the outdoor unit
- Warm air blowing from vents despite the system running
- Visible burn marks, pitting, or melted plastic on the contactor

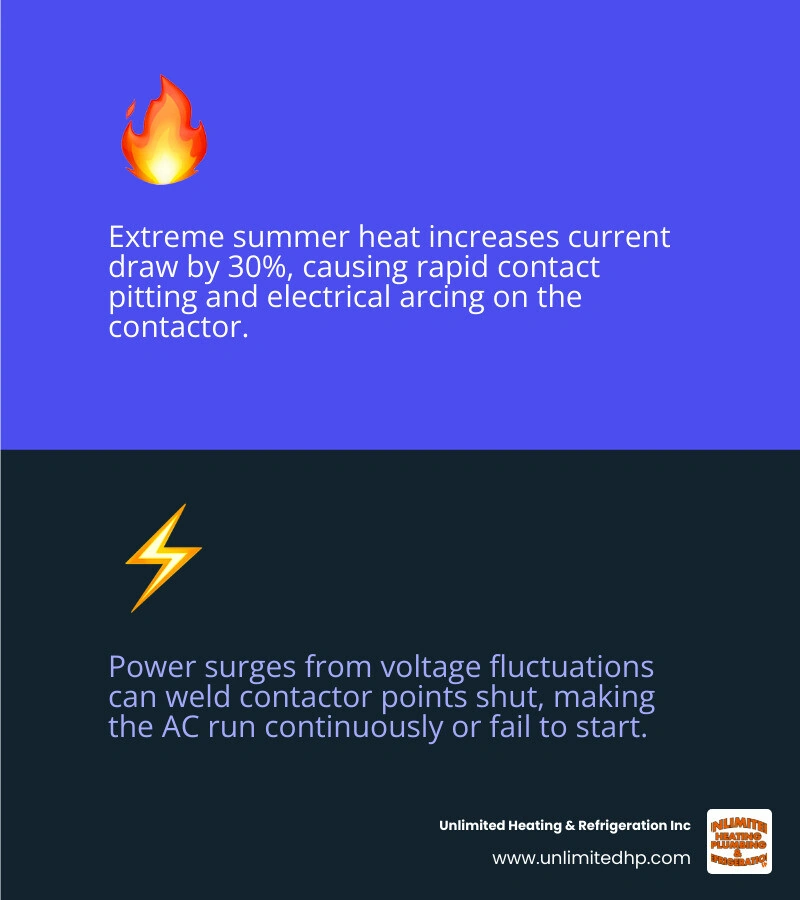

Primary Causes in Extreme Summer Heat:
- Electrical arcing and contact pitting from high current draw
- Short cycling caused by oversized equipment or failing pressure switches
- Voltage fluctuations and power surges
- Pest intrusion (ants, earwigs) blocking contact points
- Dust, debris, and moisture buildup
- Age-related wear after 10 to 15 years or 100,000 switching cycles
Contactors fail gradually — but the breakdown often feels sudden because the final failure happens when the part is pushed hardest, during a heatwave when your system is running at full capacity. The sections below walk through everything you need to know to identify the problem, understand what caused it, and know when to call in a professional.
What is an AC Contactor and What Role Does It Play?
To understand why this small part causes such massive headaches during hot weather, it helps to understand exactly what it does. Think of your Air Conditioning system as having two distinct electrical systems: a low-voltage control side and a high-voltage power side.
The low-voltage side operates on 24 volts and includes your thermostat and control board. The high-voltage side operates on 240 volts and powers the heavy-duty parts that actually cool your home: the compressor motor (the heart of the refrigeration cycle) and the condenser fan (which releases heat outside).
An AC contactor acts as the heavy-duty electrical switch that bridges these two systems. Here is how the sequence works:
- Your home's temperature rises above the set point on your thermostat.
- The thermostat sends a low-voltage thermostat signal (24V) to the outdoor unit.
- This 24V signal goes directly into a small electromagnetic coil inside the contactor.
- The energized coil creates a magnetic field that physically pulls down a metal plunger (or armature).
- As the plunger is pulled down, it forces heavy-duty brass or silver-plated contacts together.
- This closes the circuit, allowing 240V high-voltage power to flow directly to your compressor motor and condenser fan.
- Once the home cools down, the thermostat cuts the 24V signal, the magnetic field collapses, a spring pushes the contacts apart, and the high-voltage power is safely disconnected.
Single-Pole vs. Double-Pole Contactors
Most residential split-system AC units in the Palouse region use either single-pole or double-pole contactors:
- Single-Pole Contactors: These switch only one of the hot 120V lines leading to your outdoor equipment, while the other line remains continuously connected (or "hot"). This means there is always live voltage inside the unit even when it is turned off, which is a critical safety detail to remember.
- Double-Pole Contactors: These switch both hot lines simultaneously, completely isolating the compressor and fan motor from power when the system is idle.
AC Contactor Failure Symptoms and Causes in Extreme Summer Heat
When the Palouse summer heat intensifies, your cooling system has to run longer and cycle more frequently. This peak demand places incredible stress on your electrical components, making ac contactor failure symptoms and causes in extreme summer heat a primary reason for emergency service calls.
If your contactor is beginning to degrade, you will likely notice one or more of the following warning signs:
1. The Outdoor Unit is Humming or Buzzing
If you step outside and hear your outdoor unit humming or buzzing but the fan is not spinning, it is a classic sign of contactor distress. This occurs when the 24V coil is energized and trying to pull the contacts together, but mechanical binding, dirt, or pitted contacts prevent a clean connection. For more on diagnosing these sounds, read our guide on Why AC is Making a Buzzing Sound Lewiston.
2. The AC Unit Fails to Start
When you turn down the thermostat and hear nothing but silence from your outdoor unit, the contactor coil may have burned out entirely. If the electromagnetic coil is dead, it cannot generate the magnetic field required to pull the plunger down, meaning the high-voltage circuit remains open.
3. The AC Runs Constantly and Won't Turn Off
Sometimes, the contacts inside the switch become so hot from electrical arcing that the metal physically melts and welds together. When contacts weld, the switch is permanently stuck in the "on" position. Even if your thermostat is satisfied and turned off, the compressor and fan will continue to run indefinitely. If you suspect this is happening, check out our insights on an AC Running Constantly in Palouse Summer Heat.
4. Warm Air is Blowing From Your Vents
If the contactor fails partially—for instance, if one side of a double-pole contactor engages but the other does not—you might have a situation where the outdoor fan spins but the compressor fails to start. Because the compressor is not running to circulate refrigerant, your indoor unit will blow lukewarm air. This is a clear indicator that your AC Might Need Repair and How to Identify Them before the compressor suffers permanent damage.
Open vs. Welded Contactors: A Quick Comparison
| Symptom / Detail | Open Contactor Failure (Fails to Close) | Welded Contactor Failure (Fails to Open) |
|---|---|---|
| AC Behavior | Outdoor fan and compressor will not start. | System runs continuously, ignoring the thermostat. |
| Audible Signs | Silence, or a faint low-voltage buzz/click. | Continuous running; loud humming when thermostat is off. |
| Primary Cause | Burned-out 24V coil, insect blockages, severe pitting. | Heavy electrical arcing, extreme heat welding contacts. |
| Immediate Action | Check thermostat settings, call for diagnostic. | Shut off power at the main breaker panel immediately. |
| Risk Level | Low (system remains safely off). | High (can cause compressor failure or motor burnout). |
Primary Causes of Contactor Burnout in the Palouse Region
While contactors are built to handle hundreds of thousands of cycles, the environmental conditions in Moscow, ID, Pullman, WA, and surrounding areas can shorten their lifespan dramatically.
High Ambient Temperatures and Overheating
During extreme summer heatwaves, the temperature inside your outdoor unit's electrical control panel can easily exceed 140°F. This intense ambient heat, combined with the heat generated by electricity flowing through the contacts, degrades the insulation on the electromagnetic coil, leading to premature burnout.
Voltage Fluctuations and Power Surges
Summer storms and high regional power demands can cause voltage sags and spikes. If the voltage drops below 85% of its nominal rating, the magnetic force in the contactor coil weakens, causing the contacts to bounce and chatter. This chattering creates massive electrical arcs that pit, burn, and eventually weld the contacts.
Pest Infestations (Earwigs and Ants)
It might sound strange, but bugs love electrical components. Earwigs, spiders, and certain species of ants are highly attracted to the electromagnetic fields generated by contactors. Pests crawl between the open contacts, and when the switch closes, they are crushed. Their bodies create an insulating barrier that prevents a clean electrical connection, leading to localized overheating and failure.
Dust, Debris, and Loose Connections
The wind across the Palouse carries fine dust and agricultural debris. If this dust settles on the contactor's moving parts, it can cause mechanical binding. Additionally, the constant vibration of the outdoor unit can loosen terminal screws over time, causing high electrical resistance, localized heating, and wire insulation melt. If your system is struggling with intermittent starting, read more about AC Keeps Turning On and Off What is Wrong.
Electrical Chatter and Short Cycling Issues
One of the most destructive forces acting on an AC contactor is "electrical chatter." This refers to the rapid, machine-gun-like opening and closing of the contacts.
[Thermostat/Pressure Switch Signal] ---> [Contactor Coil Energizes/De-energizes Rapidly] | v [Contacts Rapidly Open & Close] | v [Severe Arcing & Heat Generation] | v [Pitted or Welded Switch Contacts]When a contactor chatters, it creates intense electrical arcing. Every arc vaporizes a tiny amount of the protective silver plating on the contacts, exposing the underlying copper. This copper quickly oxidizes, creating high resistance and generating temperatures at the terminals that can exceed 400°F.
Chatter is typically triggered by:
- Low Voltage Sags: The coil does not receive enough voltage to hold the plunger down firmly.
- Failing Safety Controls: If a high-pressure or low-pressure safety switch is failing or sensing a borderline refrigerant issue, it will rapidly interrupt the 24V signal.
- Thermostat Glitches: A malfunctioning thermostat or damaged control wiring can send erratic signals.
If you hear your outdoor unit making a rapid clicking or chattering sound, shut the system down immediately. Running your AC under these conditions is highly dangerous for your compressor. Before calling a technician, you can perform some basic checks outlined in our guide on AC Troubleshooting Before Calling a Pro.
How to Prevent AC Contactor Failure Symptoms and Causes in Extreme Summer Heat
The good news is that contactor failures are highly preventable with routine care. Taking a few proactive steps before and during the summer can keep your home cool and prevent unexpected breakdowns.
- Schedule Spring Tune-Ups: Having a professional inspect your electrical panel before the hot weather hits is the single best way to prevent failures. During a routine AC Service Lewiston ID, technicians will clean the contactor, tighten all electrical terminals, and test the coil's resistance.
- Install a Surge Protector: A dedicated HVAC surge protector installed at your outdoor disconnect box shields your contactor, capacitor, and compressor from sudden voltage spikes caused by summer lightning or utility grid fluctuations.
- Keep the Area Around the Condenser Clean: Trim back shrubs, weeds, and grass at least two feet around your outdoor unit to ensure optimal airflow and reduce the amount of dust, leaves, and insects that can find their way into the electrical cabinet.
- Address Short Cycling Immediately: If your system is turning on and off every few minutes, do not ignore it. Short cycling forces the contactor to cycle far more often than designed, leading to rapid wear.
Physical and Auditory Signs of a Bad Contactor
If you suspect your contactor is failing, a visual and auditory inspection can quickly confirm your suspicions.
Auditory Clues
- Loud, Constant Buzzing: A healthy contactor makes a very faint hum. A loud, aggressive buzz indicates a weakening coil, dirty magnet faces, or low control voltage.
- Rapid Clicking/Chattering: As mentioned, a "machine-gun" clicking sound means the contacts are bouncing rapidly, which will quickly destroy the switch.
Visual Clues of Contactor Issues
If you look inside the electrical panel of your outdoor condenser (with the power completely disconnected!), you can search for these physical signs of damage:
- Pitted Contacts: The contact surfaces should be smooth and flat. If they look rough, cratered, or black, they have suffered severe arc erosion.
- Carbon Buildup (Soot): Black carbon deposits around the contacts indicate frequent arcing. This carbon acts as an electrical insulator, forcing the coil to work harder and generate more heat.
- Melted Plastic Housing: The plastic body of the contactor should be perfectly intact. If you see warping, bubbling, or melted plastic near the terminals, the switch has experienced extreme thermal overload.
- Swollen or Discolored Coil: The copper windings on the 24V coil should look bright and clean. If they look charred, black, or swollen, the coil has burned out.
- Burned Wire Insulation: Look at the wires connecting to the contactor terminals. If the colored plastic insulation is cracked, charred, or melted back, high resistance at the terminal has generated dangerous levels of heat.
If you spot any of these physical warning signs, it is time to seek professional repair. Homeowners in the Nez Perce and Latah county areas can find reliable assistance through our AC Repair Solutions for Lewiston ID Homes.
Identifying AC Contactor Failure Symptoms and Causes in Extreme Summer Heat Visually
When inspecting a contactor, it is important to distinguish between normal age-related wear and severe damage that requires immediate attention.
Over years of service, mild pitting is normal. However, when extreme summer heat is thrown into the mix, minor pitting can quickly turn into welded contacts or a burned-out coil. If your contactor shows heavy carbon scoring, melted terminals, or insect debris packed between the contacts, replacing the part is the only reliable option.
If your system is older and experiencing frequent electrical component failures, it may be time to weigh your options. Check out our AC Repair vs Replace Decision Guide to determine whether a simple part replacement or a full system upgrade is the most cost-effective path forward.
Why Professional Replacement is Essential for Homeowner Safety
While replacing an AC contactor might seem like a simple DIY task based on online videos, it carries severe safety risks.
- 240V Shock Hazard: Your outdoor AC unit runs on high-voltage electricity. A single mistake can result in severe electrocution or death.
- Stored Capacitor Charge: Even if you turn off the main breaker, the dual run capacitor located right next to the contactor stores a massive electrical charge. Touching the capacitor terminals without properly discharging them can deliver a dangerous, high-voltage shock.
- The Single-Pole Danger: As mentioned earlier, single-pole contactors leave one high-voltage leg continuously energized. If you assume the power is off because the system isn't running, you could easily touch a live wire.
- Warranty Protection: Attempting to replace electrical parts yourself can void your manufacturer warranty.
- Root Cause Diagnosis: A professional technician does not just swap the part; they use specialized diagnostic tools to determine why the contactor failed. If the failure was caused by a failing compressor, a bad capacitor, or low voltage, simply putting in a new contactor will result in the new part burning out within days.
If your system needs professional attention, trust our experienced team for safe, reliable AC Replacement Lewiston ID.
Frequently Asked Questions About AC Contactors
Will an AC fan run if the contactor is bad?
Yes, in some cases. If you have a single-pole contactor, or if a double-pole contactor has a partial failure where only one side's contacts are damaged or welded, you may experience a situation where the outdoor fan runs continuously while the compressor remains completely off (or vice versa). This partial failure is highly dangerous because it can cause liquid refrigerant to flood back into the idle compressor, leading to permanent mechanical failure.
Can I clean pitted contacts instead of replacing the contactor?
We strongly advise against this. While you can technically use fine sandpaper or an emery board to file down carbon buildup or minor pitting as a temporary emergency fix, this is not a permanent solution. Filing the contacts removes the thin silver plating that prevents oxidation and arcing. Once this plating is gone, the exposed copper will oxidize rapidly, leading to even greater heat generation, more severe arcing, and a high risk of welded contacts within a few weeks. Because contactors are relatively inexpensive parts, replacement is always the safest and most reliable choice.
How long does an AC contactor typically last?
Under normal operating conditions, a high-quality AC contactor should last between 10 to 15 years, or roughly 100,000 cycles. However, extreme summer heat, frequent short cycling, loose wiring, and regular power surges can reduce this lifespan significantly—sometimes down to just 3 to 5 years. Regular preventive maintenance is the best way to ensure your contactor reaches its maximum lifespan.
Conclusion
Your AC contactor is a small, hardworking gatekeeper that protects and powers your entire cooling system. Recognizing the signs of failure early can save you from a hot, uncomfortable home and protect your expensive compressor from catastrophic damage.
At Unlimited Heating & Refrigeration Inc, we have been keeping homes comfortable across the Palouse for over 20 years. As a family-owned business and a trusted Daikin dealer, we stand behind our work with a 12-year warranty and our signature Comfort Promise. Whether you are in Moscow, ID, Pullman, WA, or any of our surrounding service areas, we are here to help.
If your air conditioner is buzzing, short cycling, or blowing warm air, do not wait for the hottest day of the year to address it. Contact us today to schedule your professional AC Repair Pullman WA and enjoy peace of mind all summer long.
